Protetor Externo com Flange para Rosca Padrão

Série E

EXPANDIDA
Protetor Externo com Flange para Rosca Padrão

Especificacoes:

  • Material: Polietileno de baixa densidade

  • Cores: Vide tabela


Caracteristicas:

  • Desenvolvido para fácil montagem e remoção manual ou por equipamentos automatizados.

  • Usado para proteger rosca padrão com ou sem anel.

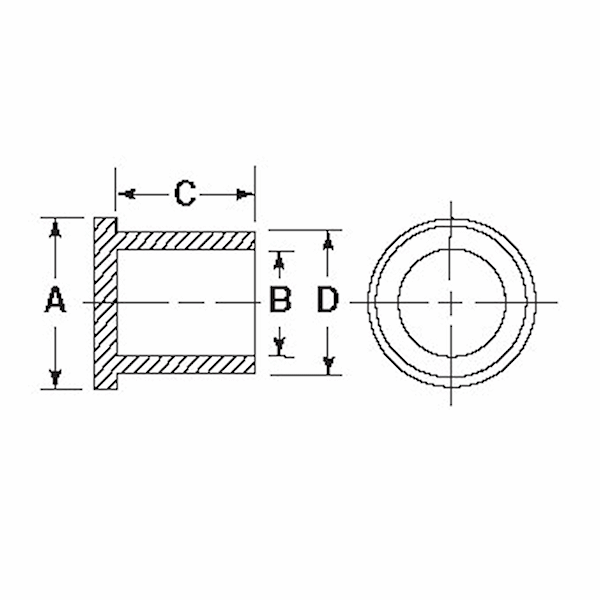

Número da Peça
Para Rosca
A Pol
A mm
B Pol
B mm
C Pol
C mm
D Pol
D mm
Cor
Qtd Embalagem
E5/16A 5/16".5112.95.3158.8421.33.3779.57Natural5
E3/8A 3/8".53113.49.3649.25.5916.67.42810.87Laranja5
E3/8AA 3/8".5814.73.3779.58.8421.34.44711.35Natural5
EL3/8A 3/8".5213.21.379.41.2832.51.4411.18Laranja5
E7/16A 7/16".62515.88.42810.87.5914.99.49212.5Natural4.25
E7/16CATB 7/16".62515.88.42910.9.615.24.49112.47Natural4.25
EL7/16A 7/16".5814.73.42810.871.0225.91.49512.57Laranja5
EL7/16AA 7/16".5814.73.42510.791.3333.98.48712.37Vermelho2.8
E1/2A 1/2".7218.29.4912.45.4611.68.5513.97Natural4
EL1/2A 1/2".6416.25.4912.451.3333.78.55214.02Natural2.8
EL9/16A 9/16".717.78.5513.971.4135.81.6215.75Natural2.5
E9/16A 9/16".8120.57.55114.4912.45.62115.77Natural5.9
E5/8A 5/8".81320.64.60615.39.7519.05.67717.2Laranja4
EL5/8A 5/8".7619.3.62515.88.8425.00.68717.48Natural3
E11/16B 11/16".93523.75.67517.14.517.15.74512.7Natural4
EL11/16A 11/16".8421.33.67817.22.8822.35.74818.99Natural2.5
E3/4A 3/4"125.4.7218.29.68817.46.79420.17Laranja3
E3/4CATA 3/4"125.4.72918.52.62515.88.78619.96Natural3
EL3/4A 3/4".8922.61.7418.81.5439.12.81320.65Laranja2.5
E13/16A 13/16"1.0626.92.820.32.5714.48.8722.1Natural2.5
K324A 13/16"1.0620.64.60515.37.84521.5.66516.89Laranja3.5
E7/8SA 7/8"1.1228.45.86421.95.6917.53.92623.52Natural4
K325A 7/8"1.10928.17.8521.58.7519.05.92523.5Laranja4.5
E7/8A 7/8"1.09627.84.8621.84.87522.23.93323.7Laranja3.5
E7/8CATB 7/8"1.09627.84.86521.97.83221.13.92123.39Natural3.5
EL7/8A 7/8"1.0125.65.8621.841.743.18.92923.6Laranja2
E1A 1"1.24631.65.99325.22.6616.761.05626.82Natural1.5
E1-1/16A 1-1/16"1.18730.151.0326.161.06227.981.09227.74Laranja2
E1-1/16CATB 1-1/16"1.28832.721.04326.49.68817.481.11428.3Natural2.8
E1-3/16B 1-3/16"1.43236.371.17229.77.7619.31.24231.55Natural2
E1-5/16B 1-5/16"1.56739.81.30233.07.7619.31.37234.85Natural1.8
E1-7/16B 1-7/16"1.69743.11.43236.37.7619.31.50238.15Natural1.5
E1-5/8B 1-5/8"1.87547.631.61541.02.83521.211.68542.8Natural1.1
E1-11/16B 1-11/16"1.92848.971.66842.37.83521.211.73844.15Natural1
E1-7/8A 1-7/8"2.13154.131.87147.52.9624.381.94149.3Natural.9
E1-7/8B 1-7/8"2.13154.131.87147.52.9624.381.94149.3Laranja.9
E2A 2"2.25657.31.99450.651.08527.562.06452.43Laranja.6
E2-1/2A 2-1/2"2.756702.49163.271.2130.732.56665.18Natural.35
EL3/8B 3/8".5213.21.379.41.2832.51.4411.18Natural5
EL7/16B 7/16".5814.73.42810.871.0225.91.49512.57Natural5
E5/8B 5/8".81320.64.60615.39.7519.05.67717.2Natural4
E3/4B 3/4"125.4.7218.29.68817.46.79420.17Natural3
EL3/4D 3/4".8922.61.7418.81.5439.12.81320.65Natural2.5
EL7/8B 7/8"1.0125.65.8621.841.743.18.92923.6Natural2
E2B 2"2.25657.31.99450.651.08527.562.06452.43Natural.6
E5/16C 5/160.51012.950.3158.000.84021.330.3779.57Natural5.000
E5/8C 5/80.81320.640.60615.390.75017.500.67717.20Azul4.000
EL5/8B 5/80.76019.300.70915.880.84025.000.68717.48Azul3.000
E18X20A -0.91023.100.70918.570.74819.300;78720.39Azul5.000
E20X20A -0.96524.500.74819.960.74819.300.82721.78Azul5.000
