Cabeamento Elétrico | Tampões Plásticos | Tampão com Flange de Recesso

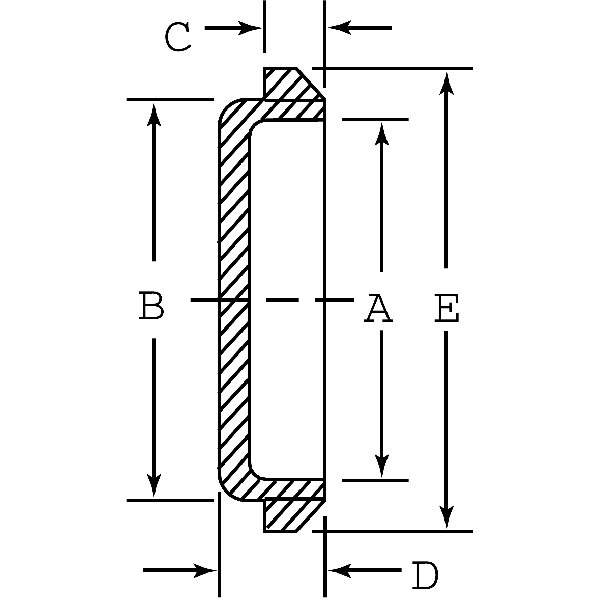

Número da Peça	Tam do Furo Pol	Espessura Max do Metal Pol	Espessura Max do Metal mm	A Pol	A mm	B Pol	B mm	C Pol	C mm	D Pol	D mm	E Pol	E mm	Qtd Embalagem
SR1/2A	.5	.11	2.79	.51	12.95	.55	13.97	.09	2.29	.29	7.37	.85	21.59	3
SR3/4A	.75	.18	4.57	.75	19.05	.8	20.32	.19	4.83	.38	9.65	1.156	29.36	4
SR7/8A	.875	.18	4.57	.875	22.23	.92	23.37	.19	4.83	.38	9.65	1.25	31.75	3.5
SR1A	1	.15	3.81	1	25.4	1.043	26.49	.096	2.44	.319	8.1	1.377	34.98	3.5
SR1-1/4A	1.25	.12	3.04	1.28	32.51	1.33	33.78	.12	3.05	.35	8.89	1.615	41.02	2
SR1-3/8A	1.375	.19	4.82	1.375	34.93	1.437	36.5	.2	5.08	.41	10.41	1.75	44.45	1.8
SR1-1/2A	1.5	.125	3.17	1.515	38.48	1.555	39.5	.12	3.05	.35	8.89	1.875	47.63	1.5
SR1-5/8A	1.625	.19	4.82	1.625	41.28	1.688	42.88	.2	5.08	.41	10.41	2	50.8	1
SR1-3/4A	1.75	.19	4.82	1.75	44.45	1.812	46.02	.2	5.08	.41	10.41	2.125	53.98	1
SR1-7/8A	1.875	.19	4.82	1.875	47.63	1.937	49.2	.2	5.08	.41	10.41	2.25	57.15	.9
SR2A	2	.19	4.82	2	50.8	2.06	52.32	.17	4.32	.39	9.91	2.5	63.5	.8
SR3A	3	.19	4.82	3	76.2	3.065	77.85	.2	5.08	.41	10.41	3.5	88.9	.3
